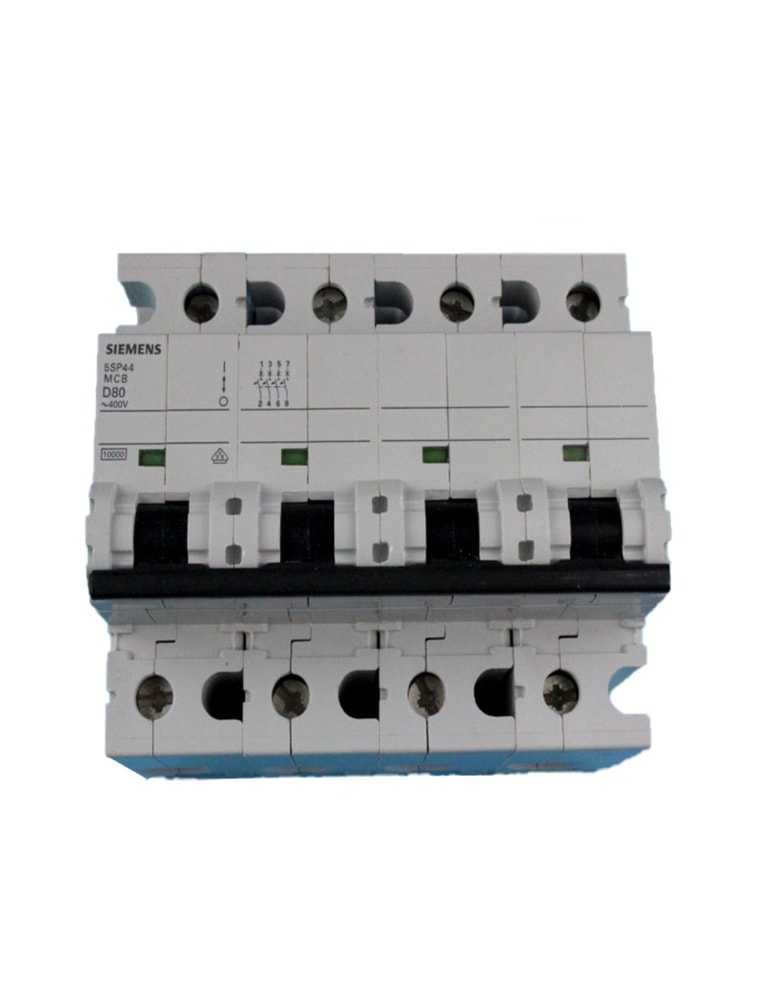

Miniature circuit breaker 400 V 10kA, 4-pole, D, 80 A, D=70 mm
Model
product brand name SENTRON
product designation Miniature circuit breaker
design of the product 5SP Miniature circuit breakers
General technical data
number of poles 4
number of poles / note 4P
tripping characteristic class D
mechanical service life (switching cycles) / typical 10 000
overvoltage category 3
degree of pollution 3
Voltage
insulation voltage
at AC / rated value 440 V
with multi-phase operation / at AC / rated value 440 V
Supply voltage
type of voltage AC
operational current / at AC / rated value 80 A
supply voltage / at AC / rated value 400 V
supply voltage frequency / rated value 50 Hz
Protection class
protection class IP IP20 with connected conductors, IP40 in the area of the handle
with distribution cover
Switching capacity
switching capacity current
acc. to EN 60898 / rated value 10 kA
Dissipation
power loss W / for rated value of the current / at AC
/ in hot operating state / per pole
7 W
